Internet of Things (IoT) Gateway Converts CAN Bus Data to WiFi, Bluetooth, BLE
illi News/10120133

GREENFIELD, Mass. - illiNews -- The ESP32 is a series of low-cost, low-power system-on-chip microcontrollers with integrated WiFi and dual-mode Bluetooth. The ESP32 series employs a Tensilica Xtensa LX6 microprocessor in both dual-core and single-core variations and includes built-in antenna switches and an RF balun power amplifier, low-noise receive amplifier, filters, and power management modules.

The ESP32 WiFi, Bluetooth Classic, BLE, CAN Bus Module comes with an onboard ESP32 WROOM-32 WiFi, Bluetooth Classic, BLE Module, and a CAN Bus port with a transceiver. Onboard is an RGB LED, IO pins on a 0.1" pad.

More on illi News

• Crypto Betting Odds 2025: Bookmakers Review Analyzes Market Predictions and Year-End Price Lines
• The OpenSSL Corporation and the OpenSSL Foundation Celebrate the Success of the Inaugural OpenSSL Conference in Prague
• TKL Group's New Factory Commences Production, Pioneering A New Era In Global Heavy Duty Truck Parts
• Regulated Crypto Exchange TZNXG Addresses Core US Market Challenges with Compliance-First Infrastructure
• Unleash Your Inner Seduction at HandPickedSC.com's "The Hot & The Wicked Halloween Soirée"

Features

• 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 512 KB SRAM
• Integrated 802.11b/g/n HT40 WiFi transceiver, baseband, stack and LWIP
• Integrated dual-mode Bluetooth (classic and BLE)
• 4 MByte flash included in the WROOM32 module
• Onboard PCB antenna
• Programming via USB-C connector
• CAN Bus transceiver
• SPI, IIC, I2S, UART ports accessible through onboard connections
• ADC, DAC channels accessible through onboard connections
• External power supply range of 4.5VDC to 46 VDC (nominal: 12 VDC) with reverse polarity protection
• Extended operating temperature range of -40C to +85C

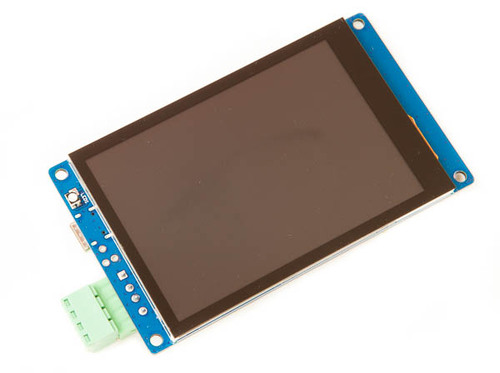

The ESP32 WiFi, Bluetooth Classic, BLE, CAN Bus Module With 3.5" Touch LCD comes with onboard ESP32 WROOM-32 WiFi, Bluetooth Classic, BLE Module, and a CAN Bus transceiver.

Also built-in is an RGB LED plus a 3.5" capacitive touch screen controlled via SPI bus.

More on illi News

• GitKraken Launches Insights to Help Engineering Leaders Quantify AI Impact and Improve Developer Experience
• ZapperBox NextGen TV Gateway Receiver Now Testing Support For Secure Whole-Home Content Distribution
• Life as a Dog: P-Wave Press Brings Readers a Heartwarming Memoir of Love, Laughter and Companionship
• NOYA Launches Premium, Design-Forward Training Gear That Belongs at the Center of Your Space
• Research Defense Examines Violence, Illiteracy, Non-Active Fathers, and Low Self-Esteem Among Males

The programming is achieved through the USB-to-Serial converter with a USB-C connector, automatic bootloader, and reset.

The board can be powered by the USB port or via an external 7 to 24 VDC supported by the onboard SMPS supply.

Features

• 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual-mode Bluetooth (classic and BLE)
• 4 MByte flash include in the WROOM32 module
• Onboard PCB antenna
• Programming via USB-C connector
• CAN Bus transceiver
• 480x320 3.5" capacitive touch screen
• RGB LED
• Power by USB or external 7 to 24 VDC with onboard SMPS supply

Both modules come with extensive documentation, i.e., user manual, schematics, and programming samples.

Copperhill Technologies Corporation's focus is on the development and sales of embedded systems for Controller Area Network, SAE J1939, and NMEA 2000. Copperhill Technologies is a member of SAE (Society of Automotive Engineers) and NMEA.
