SAE J1939 to USB, Bluetooth Gateways for Network Analyzing, Monitoring, and Recording
illi News/10223209

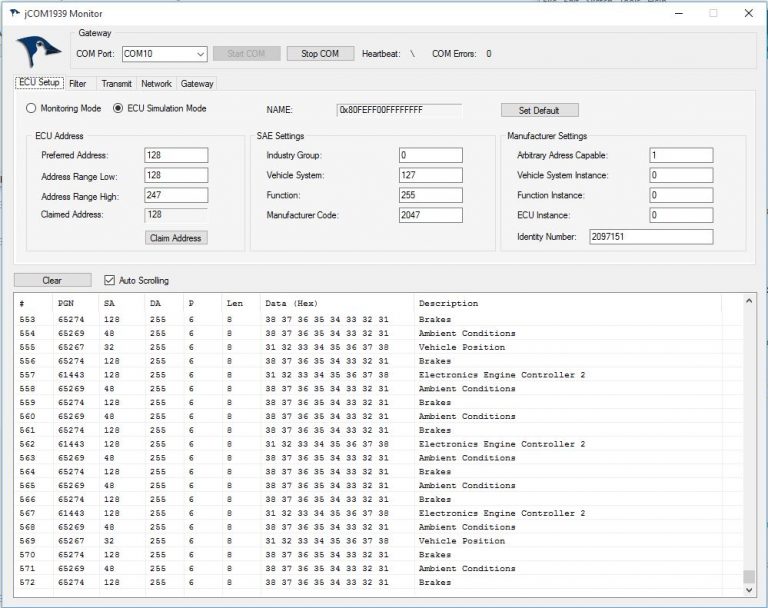

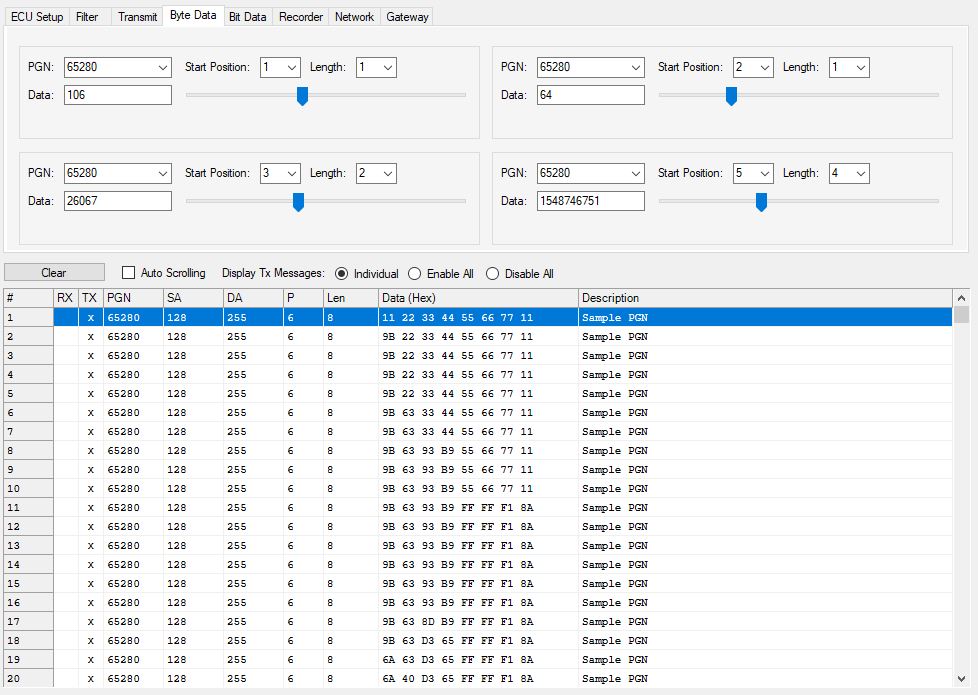

GREENFIELD, Mass. - illiNews -- The SAE J1939 USB Gateway allows monitoring, simulating, and recording any PGN as defined in the SAE J1939-71 Standard plus diagnostic messages according to SAE J1939-73. In addition, the user can specify parameters through the JCOM1939 Software for Windows, such as fuel consumption, vehicle speed, vehicle position, and more. And while the gateway does not simulate specific diesel engines, users can design and simulate any diesel engine by defining a set of corresponding PGNs.

More on illi News

• HABEMUS PAPAM - We Have a Pope!
• A.J. Rhem & Associates Launches AI Center of Excellence to Drive Ethical and Scalable AI Innovation
• Mad Farmer Tour Brings National Spotlight to Chicago Block Leaders Reclaiming Soil and Community
• Fairmint Introduces First Fully Onchain and Open Cap Table Infrastructure
• Vortex Brands Begins Gold Purchases Under New Joint Venture with Dubai-Based Partner

The board supports the full SAE J1939 protocol according to J1939/81 Network Management (Address Claiming) and J1939/21 Transport Protocol (TP). It is also supported by an extensive programming interface for Windows and Linux/Ubuntu applications, including complete C/C++/C# source code for short time-to-market developments.

The entire SAE J1939 protocol, including all timing requirements, is stored on-chip, thus taking the burden off the main system (e.g., PC). The board uses a USB COM port to communicate with the PC, i.e., all data transfer is managed through a standard COM port access. The communication protocol between the board and the PC is well documented and thus allows porting to any computer system with a USB connection. Working source code libraries exist for Windows (C# under Visual Studio 2102/2013), Linux and its derivatives (C++ using Code::Blocks), and Raspberry Pi (C using the standard gcc compiler).

With all its features, the gateway allows the simulation of an SAE J1939 ECU (Electronic Control Unit) using embedded solutions such as the Raspberry Pi, BeagleBone, Arduino, Teensy, and others but also PCs running Windows or Linux (incl. Ubuntu, Fedora, etc.).

More on illi News

• Chicago: Mayor Brandon Johnson Statement on the Election of Pope Leo XIV
• City of Naperville Fleet Services Division Ranks No. 7 in the NAFA 100 Best Fleets Competition
• This Budget Didn't Break the System—It Exposed the Truth
• Statement From EWTN Chairman & CEO Michael P. Warsaw On The Election of Pope Leo XIV
• NBA Champion Lamar Odom Launches Anti-Addiction Meme Coin, Ushering in a Disruptive Innovation in Web3

In addition, the SAE J1939 Starter Kit And Network Simulator allows the experienced engineer and the beginner to experiment with SAE J1939 data communication without needing to connect to a real-world J1939 network, i.e., a diesel engine. The starter kit consists of two SAE J1939 nodes and thus represents a fully functional network. Furthermore, both nodes connect to their instance of the JCOM1939 monitor software for Windows, allowing convenient data transfer between the nodes.

Furthermore, the SAE J1939 to Bluetooth gateway represents a wireless and fully function-compatible version of the SAE J1939 USB Gateway. It is fully certified for Bluetooth Version 2.1, and a BLE (Bluetooth Low Energy) option is also available.
